Pre-Engineered Buildings
Brochures
View our prospectus brochure for an easy to read guide on all of the services offers

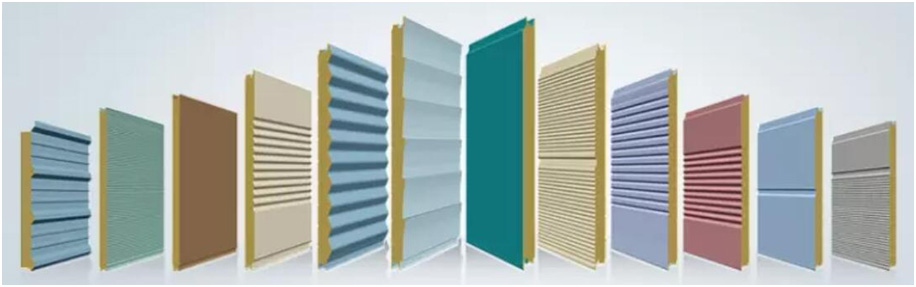

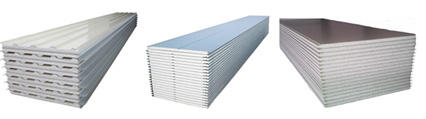

Sandwich Panel

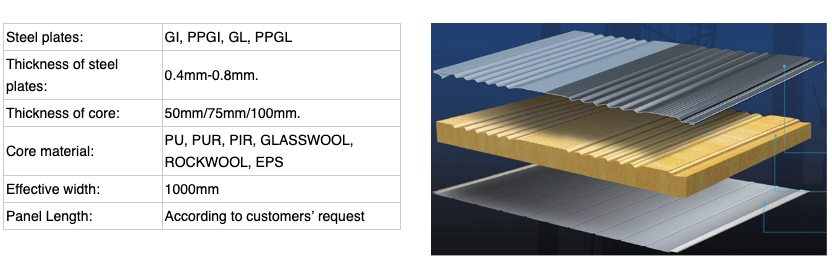

Product Parameters
PU/PUR/PIR Sandwich Composite Panel.

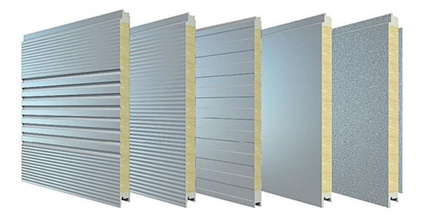

Glasswool & Rockwool Sandwich Composite Panel

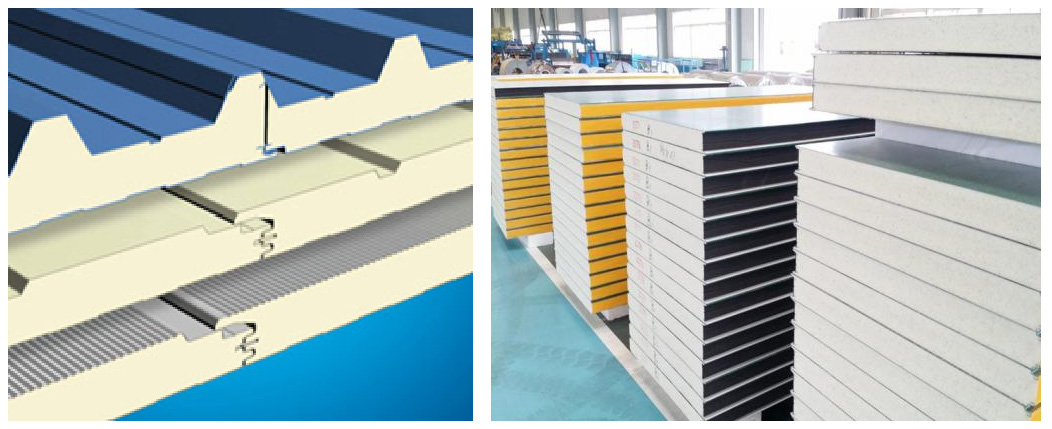

EPS Sandwich Composite Panel
In order to meet the suitable price requirement of buildings, the high-quality EPS sandwich wall panel. The product uses high-quality water-proof EPS as the core material. Through the super long precision double-track curing, the product is very good in terms thermal insulation, noise reduction and environmental protection.
Performance Description
– Water Prevention:high-quality water-proof.
– Thermal Insulation:the low coefficient of heat conductivity and the excellent node design guarantee the sealing performance and the thermal insulation effect.
– Beautiful Design: multiple color , bright in color and attractive in appearance, there is no need to make the outer ornament. The panel adopts hidden-screw node design and has diversified panel effects.
– Convenient Installation: Easy, flexible and fast. Compared with civil construction, it can cut down over 40% construction period.
Corrugated Steel Sheet
It is common for industrial buildings to have a masonry wall upto a height of 2 to 5m. This allows doors and windows to be easily fitted, and provides security. This wall can be built behind the metal sheeting, making it invisible from the outside.

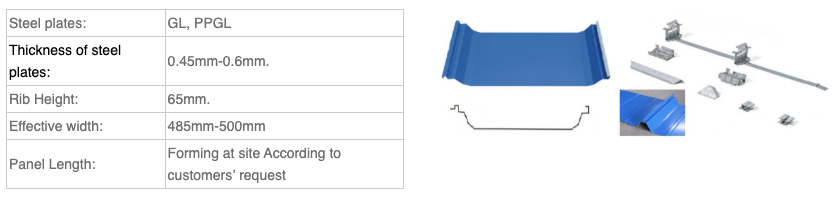

Seamlok-65 Roof System.
SEAMLOK-65 is 360 standing seaming roof system with 65mm high rib and online mastic application technology, which provides outstanding water tightness and air tightness performance. On-site roll forming is available and it can be applied to large-span roof.
Product Parameters
System Features:
– 360° seaming technology further improves the water tightness performance;
– 65mm high rib and online mastic application technology prevent water leakage:
– Panel length can be tailored to meet projects requirements, and on-site roll forming service is available, which diminished needs for lengthward overlapping, lowers installation cost and difficulties, and improve installation efficiency:
– Clips with movable tab allow the roof move with thermal expansion and contraction;
– The high rib reduce wind noise and improve anti-deformation performance;
– With other roofing systems and accessories, excellent insulation and acoustic performance will be ensured through flexible and mature design;
– Roll-formed from GL & PPGL steel coil, great anti-corrosion and durability of the system is guaranteed;
– Containerized special designed production line ensures product quality under unstable condition;
– First class seamer with advanced motor and tooling make the excellent seaming and shorten roof erection time.

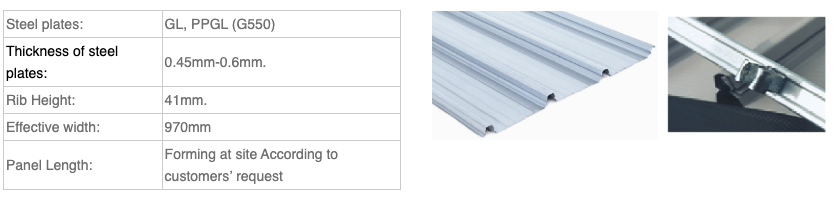

Kliplok-970 Roof System.
KLIPLOK-970 is the new generation of wide-cover, concealed-fixed cladding. It is corrugated steel roofing sheets needs to be installed by brackets, the screws are not exposed, It is easy and quickly installation, it is mostly used for on-site processing.
Product Parameters
System Features:
– The coverage can be as wide as 970mm, making the profile more economical;
– It has better uplift performance than any other available comparable product;
– Fixed clips make installation easier and more efficient;
– Improved water resistance;
– High tensile steel base enhances the profiles wind pressure capability:
– Customized length on request, on site processing service is available.
– The appealing architectural appearance and multiple-colour choice enables different design features;

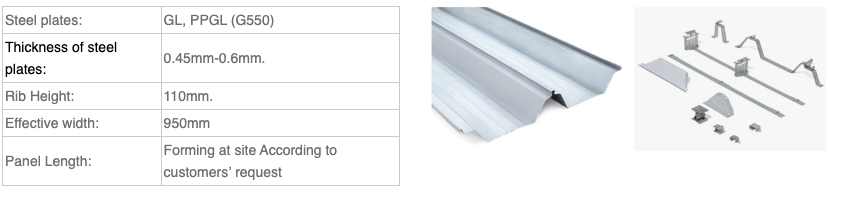

Loksem-950 Roof System.
LOKSEAM-950 is the deepth rib profile of standing seam roof system(Concealed-fixed Roof System). It is steel roofing sheets to be installed by strong brackets, the screws are not exposed, it is used for large-span roofing with low slope, the drainage effect is excellent, it is mostly used for on-site processing.
Product Parameters
System Features:
– 180° occlusion—Upright lock seam roofing system.
– 180° vertical fastening seam, waterproof and airtight.
– No screw penetration on the surface of the system.
– The unique sliding-sliding bracket makes the system have perfect thermal expansion and contraction compensation function.
– Processed equipment cabinets to ensure accurate on-site suppression of large projects.

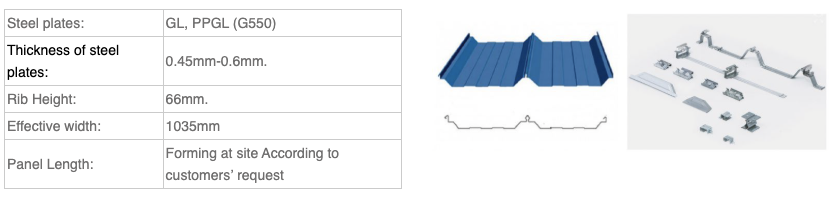

Lokseam-1035 Roof System.
Product Parameters
System Features:
– 180° occlusion—Upright lock seam roofing system.
– 180° vertical fastening seam, waterproof and airtight.
– No screw penetration on the surface of the system.
– The unique sliding-sliding bracket makes the system have perfect thermal expansion and contraction compensation function.
– Processed equipment cabinets to ensure accurate on-site suppression of large projects.

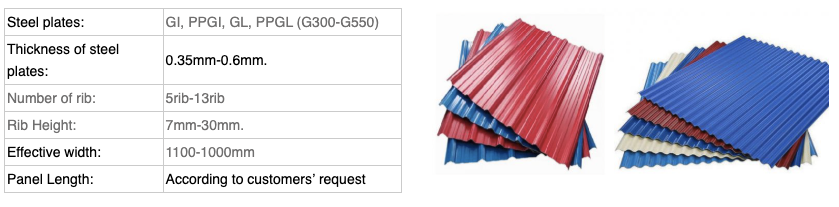

Normal Corrugated Steel Sheets.
Product Parameters
System Features:
– Standard wall panels commonly used in industrial buildings.
– It is directly connected to the secondary structure by screws and has strong wind resistance.
– The wave height and trough design make the wall panel have a stronger three-dimensional effect and better appearance.
– High standard, high strength fasteners provide excellent weather tightness.
– High effective utilization, easy installation, economical and practical.
